Hammertone Wheelchair - 18" With Fixed Arm & Swing Away Footrest

Item #: 5080S

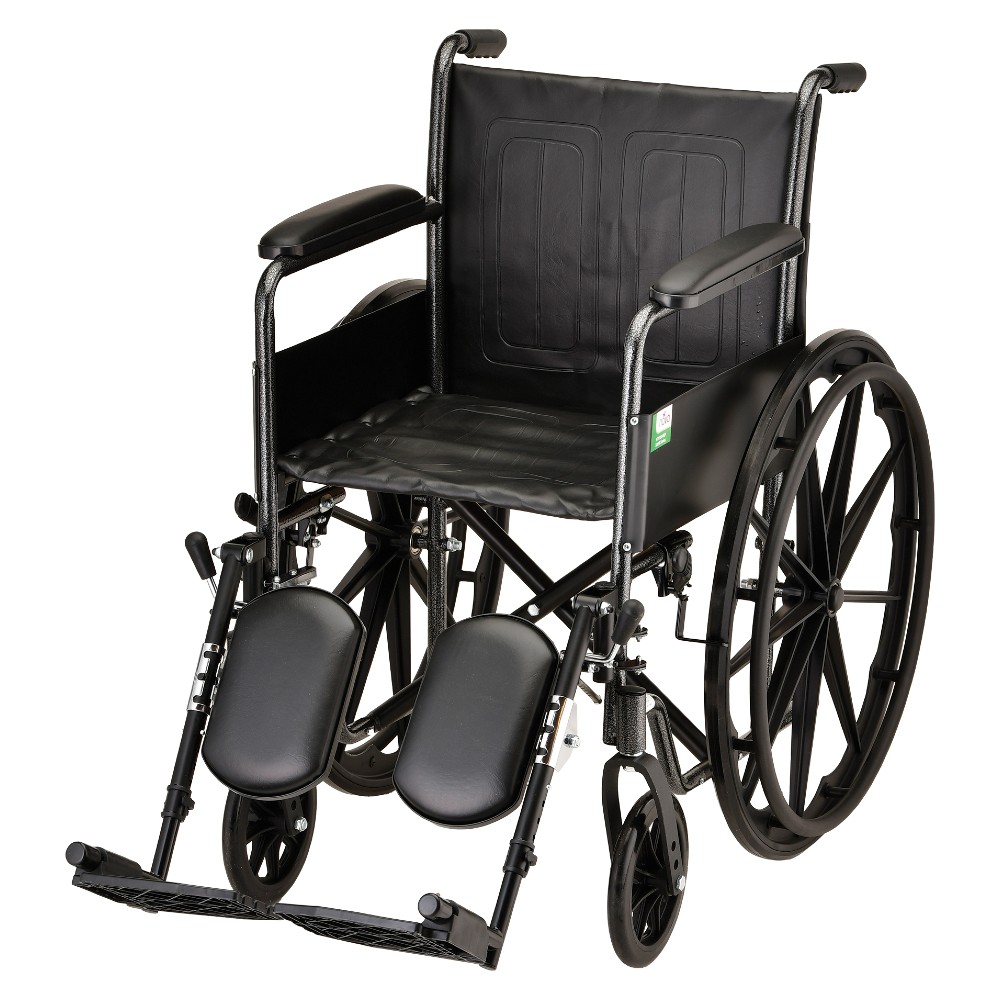

Wheel Chair
Wheel Chair Side Profile
Wheel Chair
Folded Wheel Chair
Wheel Chair with Measurements
Folded Wheel Chair with measurements
Folded Wheel Chair with measurements

Seat Width 16":

Seat Width 18":


The NOVA Steel Wheelchair in 18" width (5080S) comes equipped with fixed full-length arms and swing away footrests. It also features dual axle positions for quick seat height conversion and flame retardant black vinyl upholstery. The 24" rear wheels allow the user to self propel. There are industry compatible accessories available for this product.


  • Durable steel wheelchair with a 300 lb weight capacity. Comes equipped with fixed full-length arms, adjustable swing away footrest and a hand lever wheel lock
  • Features dual axle positions for quick seat height conversion; Seat height 18” - 20"; Seat dimension 18.2"W x 16”D
  • Hammertone finish frame with a durable and flame retardant black vinyl upholstery, with a rear pocket
  • Available in 16" or 18" seat widths; Width between arms: 16.75"; Arm height from seat: 10.5""; Back height from seat: 15.5"
  • Overall dimensions: 24.5”W x 32”D x 35”H; Folded dimensions: 11”W x 32”D x 35”H; Overall weight: 35.15 pounds


  • Weight Cap (lbs): 300
  • Seat Dimensions (inches): 18.25w x 16d
  • Overall Height (inches): 35.00
  • Overall Width (inches): 25
  • Overall Weight (lbs): 35.15
  • Overall Height Folded (inches): 35
  • Overall Width Folded: 11
  • Overall Depth (inches): 32.00
  • Overall Depth Folded: 32
  • Arm Height from Floor (inches): 30
  • Width Between Arms (inches): 16.75
  • Front Wheel Size (inches): 8
  • Rear Wheel Size (inches): 24
  • Wheel Locking/Non-Locking: LOCKING
  • Adjustable Footrests: YES
  • Adjustable Front Forks: YES
  • Seat Belt Included: NO
  • Material Frame: STEEL
  • Material Rear Wheel: PU
  • Material Front Wheel: TPR
  • Material Upholstery: VINYL
  • Latex free: YES
  • Handle Height/Floor Adjustment (inches): 33 - 35
  • Back Dimension: 16.75w x 17.75h
  • Back Pocket Dimensions: 16.75w x 12h
  • Cleaning Instructions: Wipe with Dry Cloth
  • Country of Origin: CHINA
  • Retail Packaged: N
  • UPC Each: 652308508001
  • Warranty: Metal Frame: Limited Lifetime Warranty; Brakes: 5 Years; Non-metal/Metal parts: 1 Year

User Guide & Warranty
